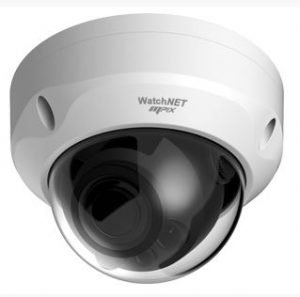

Watchnet MPIX-80VDF-IR28R2

Features
  • 1/1.8” 8Megapixel progressive CMOS
  • H.265 & H.264 dual-stream encoding
  • 25/30fps@8MP(3840×2160)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens
  • Max IR LEDs Length 30m/98ft
  • IP67, IK10, PoE
  • Analytic Functions
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
MPIX-80VDF-IR28R2
Camera
Image Sensor 1/1.8 8Megapixel progressive CMOS
Effective Pixels 3840(H) x 2160(V)
Min. Illumination 0.003Lux/F1.6 (Color,1/3s,30IRE)
0.02Lux/F1.6 Color,1/30s,30IRE)
0Lux/F1.6(IR on)
RAM / ROM 512MB/128MB
S/N Ratio >More than 50dB
Scanning System Progressive
IR LEDs 1
Lens
 Max Aperture F1.6/F1.6/F1.6
Focal Length 2.8mm fixed lens
Focus Control Fixed
IR Distance Up to 30m (98ft)
Mount Type Board-in Type
Close Focus Distance 1.5m (4.9ft)
Features
 Day/Night Auto(ICR) / Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
Digital Zoom N/A
Gain Control Auto / Manual
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265/H.264H/MJPEG(Sub Stream)
Image Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/
3M(2048×1536)/3M(2304×1296)/1080P(1920×1080)/
1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)
/VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4K (1~25/30fps) Sub Stream: D1(1~25/30fps)
Bit Rate H.264:32Kbps~8192Kbps / H.265: 16Kbps~8192Kbps
Region of Interest Off / On (4 Zone)
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FT
P;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;
Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH;NFS
Max. User Access 10 users/20 users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G/Profile T); P2P
Edge Storage
 Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Audio
 Compression N/A
Interface N/A
Auxiliary Interface
 Memory Slot N/A
Alarm N/A
Environmental
 Power Supply DC12V, PoE (802.3af)(Class 0
Power Consumption <8.9W
Operating Temp./Hum. -30° C ~ +60° C (-22° F ~ +60° F), Less than 95%RH
Protection Level IP67, IK10, POE
Dimension φ122mm×88.9mm (4.80”x3.50”)
Net/Gross Weight 0.45Kg (1.0lb) / 0.60Kg(1.33lb)
