• Watchnet MPIX-80VDF-IR28
Watchnet MPIX-80VDF-IR28
Watchnet MPIX-80VDF-IR28
Categories: , , , , .

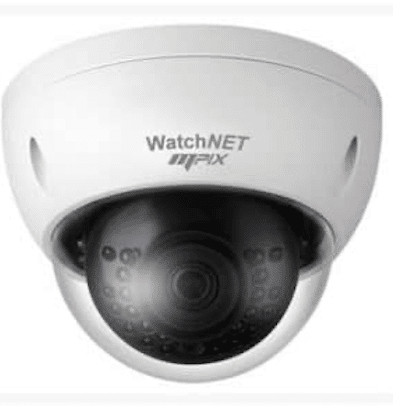

Watchnet MPIX-80VDF-IR28

Features
  • Vandal-proof IR dome camera
  • 1/2.5” 8MP progressive scan CMOS
  • 15fps@4K(3840×2160), 25/30fps@3M(2304×1296)
  • Ultra Low Light Enhancement
  • WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens, 3 AXIS
  • Max. IR LEDs length 30m/98 feet
  • Micro SD memory, IP67, IK10, PoE
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
MPIX-80VDF-IR28
Camera
Image Sensor 1/2.5” 8Megapixel progressive CMOS
Effective Pixels 3840(H) x 2160(V)
Min. Illumination 0.03Lux/F2.5( Color,1/3s,30IRE) 0.3Lux/F2.5( Color,1/30s,30IRE) 0Lux/F2.5(IR on)
RAM / ROM 512MB / 32MB
S/N Ratio >More than 50dB
Scanning System Progressive
IR LEDs 18
Lens
 Max Aperture F2.5 (F2.2)
Focal Length 2.8mm fixed lens
Focus Control Fixed
IR Distance Up to 30m (98ft)
Mount Type Board-in Type
Close Focus Distance 0.9m(1.7m)
Features
 Day/Night Auto(ICR) / Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
Digital Zoom 16x
Gain Control Auto / Manual
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265+/H.265/H.264+/H.264
Image Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048×1536)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480) / VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4K(1~15fps)/3M(1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 1080P(1~25/30fps)
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Region of Interest Off / On (4 Zone)
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Max. User Access 10 users/20 users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF, PSIA, CGI
Edge Storage
 Edge Storage NAS (Network Attached Storage), Local PC for instant recording, Mirco SD card 128GB
Audio
 Compression G.711a/ G.711Mu/ AAC/ G.726
Interface N/A
Auxiliary Interface
 Memory Slot Mirco SD card 128GB
Alarm 1/1 channel In/Out
Environmental
 Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <5.2W
OperatingTemp./Hum. -40° C ~ +60° C (-40° F ~ +60° F), Less than 95%RH
Protection Level IP67, IK10, POE
Dimension Φ109.9mm × 81mm /4.33” × 3.19”
Net/Gross Weight 0.41kg (0.91l / 0.53 kg (1.17lb)
