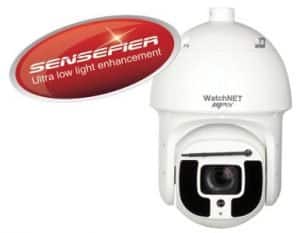

Watchnet MPIX-80IRPTZAI

Features
        • 1/1.8″ 8.0Mp CMOS image sensor
        • Powerful 40x optical zoom
        • AI Auto Tracking of person and/or Vehicle
        • IR Distance up to 500m/1640ft
        • H.265+/H.265/H.264+/H.264/MJPEG (Sub Stream)
        • Built-in 7/2 alarm inputs/outputs
        • Max 240°/s pan speed, 360° endless pan rotation
        • Max. 25/30fps@4K
        • Focal Length: 5.6mm ~ 223mm
        • WDR(120dB), Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
        • Support Triple-streams encoding
        • Micro SD memory up to 256GB, IP67
        • Phone, iPad, Android
        • Multiple network monitoring: Built-in web server & Multifunction VMS
        • Support Multicast Function
        • Pro AI Functions:

      · Face Capture (Detect & Recognition with attributes)

      • · Fenced Area protection
      • · People Counting Functions

· Line Crossing (Person & Vehicle Classification)

Technical Specifications
Camera
Image Sensor 1/1.8” 8 Megapixel progressive scan CMOS
Scanning System Progressive scan
Effective Pixels 3840(H) x 2160(V)
Min Illumination Color: 0.002Lux@F1.4;
B/W: 0.0002Lux@F1.4;0Lux@F1.4 (IR on)
Electronic Shutter Speed 1/1s~1/30,000s
IR On/Off Control Auto / Manual
IR LEDs 10
Lens
Max. IR Lenght 500m (1640ft)
Gain Control Auto / Manual
Max Aperture F1.4 ~ F4.8
Focal Length 5.6mm ~ 223mm (40x Optical zoom)
Angle of View H: 63.9° ~ 2.0°; V: 37.3° ~ 1.1° ; D: 71.2° ~ 2.3°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
Features
Day/Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Backlight Compensation BLC / HLC / WDR
Noise Reduction 2D / 3D
Digital Zoom 16x
Privacy Masking Up to 24 areas
PTZ
Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s
Preset Speed Pan: 240° /s; Tilt: 120° /
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°, auto flip 180°
Presets 300
Speed Setup Human-oriented focal length / Speed adaptation
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Idle Action Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Time Task Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Protocol WatchNET, Pelco-P/D (Auto recognition)
Video
Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Resolution 4K(3840×2160)/1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/
704×480)/CIF(352×288/352×240)
Bit Rate H.265/H.264: 512K ~ 8192Kbps
Frame Rate Main Stream: 4K(1~25/30fps), 1080P/1.3MP/720P (1~25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) Third Stream: 1080P/1.3M/720P (1 ~ 25/30fps)
Intelligence
Fenced Area Protection Line Crossing, Intrusion. Support alarm triggering by target types(human and vehicle)
Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
Auto Tracking Supports
Face Recogntion Supports
Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Interoperability ONVIF(Profile S/Profile G/Profile T); P2P
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS, FTP, IP Filter,QoS,Bonjour,802.1x
Edge Storage NAS / Local PC for instant recording / Micro SD card 256GB
Smart Phone iPhone, iPad, Android
Max. User Access 20 users
Audio
Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2
Interface 1/1 channel In/Out
Auxiliary Interface
RS485 1
Memory Slot Micro SD, Max 256GB
Alarm I/O 7/2

General
Power Consumption 26W, 42W (Heater on, IR on)
Power Supply AC24V/3A(±25%), Hi-PoE
Protection Level IP67
Operating temperature -40º to 70 ºC (-40º to 158 ºF)
Dimensions Φ262(mm) x 415.6 (mm)
Net/Gross Weight 8.5kg(18.74lb) / 13.5kg(29.76lb)
