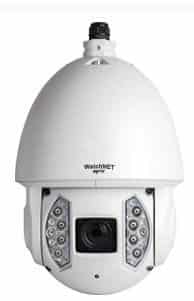

Watchnet MPIX-80IRPTZ

Features
  • 1/1.7″ 8.0Mp CMOS image sensor
  • Powerful 30x optical zoom
  • IR Distance up to 200m/656ft
  • H.265 / H.264 / MJPEG Compression
  • Built-in 7/2 alarm inputs/outputs
  • Max 240°/s pan speed, 360° endless pan rotation
  • Max. 25/30fps@4K
  • Focal Length: 6mm – 180mm
  • D-WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Support Triple-streams encoding
  • Micro SD memory, IP67
  • Phone, iPad, Android
  • Multiple network monitoring: Built-in web server & Multifunction VMS
  • Support Multicast Function
Technical Specifications
Camera
Image Sensor 1/1.7” 8 Megapixel progressive scan CMOS
Scanning System Progressive scan
Effective Pixels 3840(H) x 2160(V)
Min Illumination Color: 0.05Lux@F1.6; 0Lux (IR on)
Electronic Shutter Speed 1/1s~1/30,000s
IR On/Off Control Auto / Manual
S/N Ratio More than 56dB
Lens
Max. IR Lenght 200m (656ft)
Gain Control Auto / Manual
Max Aperture F2.8
Focal Length 6mm ~ 180mm (30x Optical zoom)
Angle of View H: 61.2° ~ 2.1°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
Features
Day/Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Backlight Compensation BLC / HLC / D-WDR
Noise Reduction 2D / 3D
Digital Zoom 16x
Privacy Masking Up to 24 areas
PTZ
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Presets 300
Speed Setup Human-oriented focal length / Speed adaptation
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Idle Action Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Time Task Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Protocol WatchNET, Pelco-P/D (Auto recognition)
Video
Compression H.265+/H.265/H.264+/H.264/MJPEG
Resolution 4K(3840×2160)/1080P(1920×1080)/1.3M(1280x 960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Bit Rate H.265/H.264: 256K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Frame Rate Main Stream: 4K/1080P/1.3M/720P(1~25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
Network
Ethernet RJ-45 (100Base-TX/1000Base-T)
Interoperability ONVIF, PSIA, CGI
Protocol IPv4/IPv6, HTTP, HTTPS, SSL,TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, 802.1x
Edge Storage NAS / Local PC for instant recording / Micro SD card 128GB
Smart Phone iPhone, iPad, Android
Max. User Access 20 users
Audio
Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2
Interface 1/1 channel In/Out
Auxiliary Interface
RS485 1
Memory Slot Micro SD, Max 128GB
Alarm I/O 7/2
General
Power Consumption 24W, 38W (IR on)
Power Supply AC24V/3A(}25%), Hi-PoE
Protection Level IP67, IK10
Operating temperature -40º to 70 ºC (-40º to 158 ºF)
Dimensions Φ240(mm) x 382 (mm) (Φ9.45”×15.04”)
Net/Gross Weight 6.75kg (14.88lb) / 10.1kg (22.27lb)
