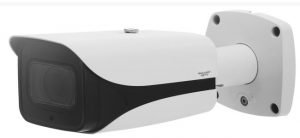

Watchnet MPIX-80BIMR

Features
  • Motorized WDR IR bullet camera
  • 1/2.5” 8 Megapixel progressive scan CMOS
  • 15fps@4K(3840×2160), 25/30fps@3M(2304×1296)
  • H.265 & H.264 triple-stream encoding
  • WDR up to 120dB
  • 2.7mm – 12mm motorized lens
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Max. IR LEDs length 50m/164ft
  • 2/1 Alarm in/out, 1/1 audio in/out
  • Micro SD memory, IP67, IK 10, PoE
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
MPIX-80BIMR
Camera
Motorized / Auto Iris(DC)
Image Sensor 1/2.5” 84 Megapixel CMOS
Effective Pixels 3840(H) x 2160(V)
Min. Illumination 0.05Lux/F1.4 (Color,1/3s,30IRE) 0.2Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4 (IR on)
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
S/N Ratio >50dB
Scanning System Progressive
RAM / ROM 512MB / 32MB
Lens
 Max Aperture F1.4
Focal Length 2.7mm – 12mm Motorized lens
White Balance Auto / Sunny / Night / Outdoor / Customized
Lens Type Motorized / Auto Iris(DC)
Mount Type Board-in Type
Angle of View H:110°~40° , V:58°~23°
Features
 Day/Night Auto(ICR) / Color/B/W
Backlight Compensation BLC / HLC / WDR
Max. IR LEDs Length 50m/164feet
Gain Control Auto / Manual
White Balance Auto / Sunny / Night / Outdoor / Customized
Noise Reduction 3D
Privacy Masking Up to 4 areas
Video
 Video Compression H.265+ / H.265 / H.264+ / H.264
Image Resolution 4K(3840×2160)/ 6M(3072×2048)/5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(128 0x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240
Frame Rate Main Stream: 4K(1~15fps)/3M(1~25/30fps) / Sub Stream: D1(1~25/30fps) / Third Stream: 720P(1-25/30fps)
Bit Rate H.264: 24~10240Kbps / H.265: 14~9984Kbps
Noise Reduction 3D DNR
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Max. User Access 10 Users / 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF profile S, PSIA, CGI
Smart Function
 Smart detection Support
Audio
 Compression G.711a / G.711Mu / AAC / G.726
Audio Interface 1/1 channel In/Out
Auxiliary Interface
 Memory Slot Micro SD, Max 128GB
Alarm 2 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC
Environmental
 Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <12.95W
OperatingTemp./Hum. -30°C~+60°C /-22°F~+140°F, Less than 95%RH
Protection Level IP67, POE
Dimension 273.2mm × 95.0mm × 95.0mm / (10.76”×3.74”×3.74”)
Net/Gross Weight 1.11Kg (2.44lb) / 1.51Kg (3.33lb)
