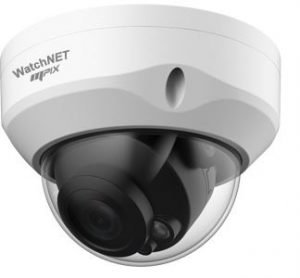

• Watchnet MPIX-50VDV-IRVAI
Watchnet MPIX-50VDV-IRVAI
Watchnet MPIX-50VDV-IRVAI
Categories: , , , , .

Watchnet MPIX-50VDV-IRVAI

Features
  • 1/2.7” 5Megapixel progressive scan CMOS
  • H.265 codec, high compression rate, low bit rate
  • Effective Pixels – 2592 (H) × 1944 (V)
  • WDR(120dB), Day/Night (ICR), 3D DNR, BLC / HLC
  • 2.8 mm fixed lens
  • Max. LEDs Length 40m/131ft
  • Micro SD memory (Max. 256GB), IP67, IK10, PoE
  • Supports 12V DC/PoE (802.3af)
  • AI Functions:
    · Fenced Area protection
    · AI Motion Detection
    · Line Crossing (Person & Vehicle Classification)
  • Built-in web server
  • Smart phones compatible
Technical Specifications
Model
MPIX-50VDV-IRVAI
Camera
Motorized vari-focal
Image Sensor 1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels 2592 (H) × 1944 (V)
Min. Illumination 0.005 Lux@F1.5
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
RAM/ROM 128 MB / 512MB
IR LEDs Number 2 (IR LEDs)
LED Distance 40 m (131 ft)
Lens
 Max Aperture F1.5
Focal Length Motorized 2.7 mm–13.5 mm
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Motorized vari-focal
Mount Type φ14
Angle of View Horizontal: 99°-26°Vertical: 72°-20° Diagonal: 133°-33°
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
Close Focus Distance 0.8 m (2.6 ft)
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Image Resolution 5M (2592 × 1944); 4M (2688 × 1520);
3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main Stream: (2592 × 1944@1–20 fps) (2688 × 1520@1–25/30 fps)
Sub Stream: (704 × 576@1–25 fps/ 704 × 480@1–30 fps)
Third Stream: 1280 × 720@1–25/30 fps
Bit Rate H.264: 3 Kbps–8192 Kbps / H.265: 3 Kbps–8192 Kbps
Edge Storage FTP; SFTP; Micro SD Card (support max. 256GB);
WatchNET Cloud; NAS
Professional Intelligence
 Fenced Area Protection Line Crossing, Intrusion (Human & Vehicle classification)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Motion Detection AI Motion Detection
Network
 Ethernet RJ – 45 (10/100Base -T )
Network Protocol IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
R TMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;
Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G/Profile T); P2P
Audio
 Compression N/A
Audio Interface N/A
Edge Storage
 Memory Slot FTP; SFTP; Micro SD Card (support max. 256GB)
Alarm N/A
Environmental
 Power Supply 12V DC/PoE (802.3af)
Power Consumption <8.5W
Operating Temp./Hum. Operating Conditions: -30°C~+60°C /-22°F~+140°F, less than≤95%
Protection Level IP67, IK10
Dimension Φ122 mm × 88.9 mm (Φ4.8″ × 3.5″)
Net/Gross Weight 492 g (1.1 lb) / 663 g (1.5 lb)
