Watchnet MPIX-40VDV-IRM

Features

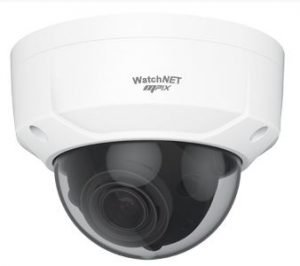

  • Motorized vandal-proof IR dome camera
  • 1/3” 4 Megapixel progressive scan Aptina CMOS
  • Dual Voltage – DC12V, AC24V
  • Max 25/30fps@4Mp(2688×1520)
  • H.265 & H.264 triple-stream enco
  • 2.7mm – 13.5mm motorized lens
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC
  • Max. IR LEDs length 50m/164ft
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Micro SD memory, IP67, IK10, PoE+
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
 MPIX-40VDV-IRM
Camera
 Motorized variable focus
Image Sensor 1/3” 4 Megapixel Aptina CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 0.03Lux/F1.4 (Color,1/3s,30IRE) 0.3Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on)
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
S/N Ratio >50dB
Scanning System Progressive
IR LEDs 3
Lens
 Max Aperture F1.4
Focal Length 2.7mm ~ 13.5mm motorized lens
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Motorized / Auto Iris(DC)
Mount Type Board-in Type
Angle of View H: 106°~31°, V:58°~17°
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
Max. IR LEDs Length Up to 50m (164ft)
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Up to 4 areas
Video
 Video Compression H.265+/H.265/H.264+/H.264
Image Resolution 4M(2688×1520) / 3M(2304×1296) / 1080P(1920×1080) 1.3M(1280×960) /720P(1280×720)/ D1(704×576/704×480) / VGA(640×480) /CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)<br) third=”” stream:=”” 720p(1~25=”” 30fps)<=”” td=””></br)>
Bit Rate H.264: 24~10240Kbps H.265: 14~9984Kbps
Edge Storage NAS
Local PC for instant recording
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Max. User Access 10 Users / 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF, PSIA, CGI
Smart Function
 Smart detection Supported
Audio
 Compression G.711a/ G.711Mu/ AAC/ G.726
Interface 1/1 channel In/Out
Auxiliary Interface
 Memory Slot Micro SD, Max 128GB
Alarm 1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VD
Environmental
 Power Supply DC12V, AC24V, PoE+(802.3at)(Class4)
Power Consumption <15W
OperatingTemp./Hum. -30°C~+60°C /-22°F~+140°F, Less than 95%RH
Protection Level IP67, IK10, POE
Dimension Φ159mm×117.9mm / 6.25” × 4.64”
Net Weight 0.95kg / (2.09lb)
