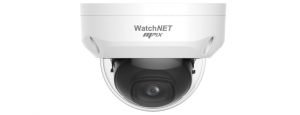

Watchnet MPIX-40VDF-IR28R2

Features
  • 1/3” 4.0 Megapixel progressive scan CMOS
  • Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 x 1520) @ 20 fps
  • H.264 & H.265
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • LENS: 2.8mm fixed lens
  • Max. IR LEDs length 30m/98feet
  • IP67, IK10, PoE
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
  • Intelligent detection: Intrusion, Line Crossing
Technical Specifications
Model
MPIX-40VDF-IR28R2
Camera
Image Sensor 1/3” 4MP progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 0.01 Lux @ F1.6
RAM / ROM 2688(H) x 1520(V)
IR On / Off Control >Auto / Manual
Scanning System Progressive
IR LEDs 3
Lens
 Max Aperture F1.6
Focal Length 2.8mm fixed lens
Angle of View Horizonal: 102.0° Vertical: 55.0° Diagonal: 121.0°
IR Distance Up to 30m (98.4ft)
Mount Type M12
IR On/Off Control Auto / Manual
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
Smart IR Yes
Gain Control Auto / Manual
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265; H.264; H.264B; MJPEG
Image Resolution 2688×1520 (2688×1520); 2560×1440 (2560×1440);
2304×1296 (2304×1296); 1080p (1920×1080);
1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352× 288/352×240)
Frame Rate Main Stream: 2688×1520 (1fps-20fps) 2560×1440 (1fps-25/30fps)
Sub Stream: 704×576 (1fps-25fps)704×480 (1fps-30fps)
Bit Rate H.264: 32K~6144K / H.265: 12K~ 6144K
Region of Interest Off / On (4 Zone)
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G/Profile T); P2P
Edge Storage
 Smart detection WatchNET Cloud; FTP; Micro SD Card (support max. 256 GB); NFS
Audio
 Audio Compression N/A
Interface N/A
Auxiliary Interface
 Memory Slot Micro SD Card (support max. 256 GB)
Alarm N/A
Environmental
 Power Supply DC12V, PoE
Power Consumption <5.2W
OperatingTemp./Hum. <-40° C ~ +60° C (-40° F ~ +60° F), Less than 95%RH
Protection Level IP67, IK10, POE
Dimension Φ109.9mm × 81mm /4.33” × 3.19”
Net/Gross Weight 0.34Kg (0.75lb) / 0.47Kg (1.04lb)
