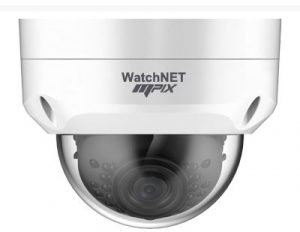

Watchnet MPIX-40VDF-IR28

Features
  • 1/3” 4.0 Megapixel progressive scan CMOS
  • 20fps@4M(2688×1520) & 25/30fps@3M(2304×1296)
  • H.265+ & H.265
  • D-WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • LENS: 2.8mm fixed lens
  • Max. IR LEDs length 30m/98feet
  • IP67, IK10, PoE
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
MPIX-40VDF-IR28
Camera
Image Sensor 1/3” 4MP progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 00.09Lux/F2.0( Color,1/3s,30IRE)
0.5Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on
RAM / ROM 2688(H) x 1520(V)
S/N Ratio >More than 50dB
Scanning System Progressive
IR LEDs 24
Lens
 Max Aperture F2.0/F2.0
Focal Length 2.8mm fixed lens
Angle of View H:123°/95°, V:101°/80°°
IR Distance Up to 30m (98.4ft)
Mount Type Board-in Type
IR On/Off Control Auto / Manual
Features
Day/Night
 Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / D-WDR
Digital Zoom 16x
Gain Control Auto / Manual
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265/H.264H/MJPEG(Sub Stream)
Image Resolution 4M(2688×1520)/3M(2304×1296)/1080P
(1920×1080)/720P(1280×720)/VGA(640×480)/
D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 20fp)
Bit Rate H.264: 32K~6144K / H.265: 12K~ 6144K
Region of Interest Off / On (4 Zone)
Network
Ethernet
 RJ-45 (10/100Base-T)
Network Functions HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;
SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;
UPnP;NTP;Bonjour;IEEE802.1X;
Multicast;ICMP;IGMP;TLS;SSH
Max. User Access 10 Users /20 Users
Smart Phone iPhone, iPad, Android
ONVIF
 ONVIF, PSIA, CGI
Edge Storage
 Smart detection NAS (Network Attached Storage), Local PC for instant recording
Audio
 Audio Compression N/A
Interface
 N/A
Auxiliary Interface
 Memory Slot N/A
Alarm
 N/A
Environmental
 Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <4.4W
OperatingTemp./Hum. <-30° C ~ +60° C (-22° F ~ +60° F), Less than 95%RH
Protection Level IP67, IK10, POE
Dimension Φ109.9mm × 81mm /4.33” × 3.19”
Gross Weight 0.53 kg (1.17lb)
