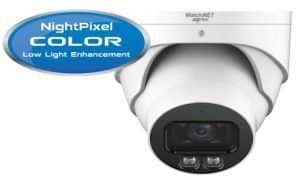

Watchnet MPIX-40LEDT-NPC28AI
Watchnet MPIX-40LEDT-NPC28AI
Categories: , , , , , , , .

Watchnet MPIX-40LEDT-NPC28AI

Features
  • 1/1.8” 4Megapixel progressive scan CMOS
  • H.265 & H.264 triple-stream encoding
  • 25/30 fps@2688×1520, 50/60 fps@1080 (1920×1080)
  • Ultra WDR(140dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
  • 2.8 mm fixed lens
  • LED Illuminating light source (Not IR), 20m/66ft
  • Micro SD memory (Max. 256GB), IP67, PoE
  • Supports DC 12V +/-30%), PoE (802.3af) (Class 0)
  • Pro AI Functions:
    · Face Capture (Detect & Recognition with attributes)
    · Fenced Area protection
    · People Counting Functions
    · Line Crossing (Person & Vehicle Classification)
  • Built-in web server
  • Smart phones compatible
Technical Specifications

Model

 MPIX-40LEDT-NPC28AI

Camera

 Fixed Focus
Image Sensor 1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 0.001 Lux@F1.6
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
RAM/ROM 512MB / 128MB
Scanning System Progressive
LED Distance LED Illuminating light source (Not IR), 20m/66ft

Lens

 Max Aperture F1.6
Focal Length Fixed 2.8mm lens
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Fixed
Mount Type Board-in Type
Angle of View H: 113°, V: 60°

Features

 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / Ultra WDR (140dB)
Close Focus Distance 1.3 m (4.27 ft)
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG (sub stream)
Image Resolution 2688×1520/2560×1440/2304×1296/1080P
(1920×1080)/1.3M (280×960)/720P (1280×720)/
D1(704×576/704×480)/VGA (640×480)/
CIF(352×288/352×240)
Frame Rate Main Stream: 2688×1520 (1fps-25/30fps)
2560×1440 (1fps-25/30fps)
1920×1080 (1fps-50/60fps)
Sub Stream: D1 (1fps-25/30 fps)
D1 (1fps-50/60fps)
Third Stream: 1080P (1fps-16 fps)
Bit Rate H.264: 32 Kbps-8192 Kbps / H.265: 19 Kbps-8192 Kbps
Edge Storage NAS
Local PC for instant recording
Micro SD card 256G
Artificial Intelligence
 Face Capture Support face image capture
People Counting Support Line crossing/Region/Queueing people counting;
Support 4 accesses independent detection,
4 areas independent detection
Fenced Area Protection Line Crossing, Intrusion (Human & Vehicle classification)
Event Trigger Motion detection, Video tampering, Scene changing,
Network disconnection, IP address conflict, Illegal Access,
Storage anomaly
General Intelligence Object Abandoned / Missing
Network
 Ethernet RJ – 45 (10/100Base -T )
Network Functions HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP,
DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP,
NTP, ICMP, HTTPS, IGMP, 802.1x
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G; P2P
Interface
 Audio Interface Built-in MIC
Audio
 Compression G.711a, G.711Mu, G.726, AAC, G.723
Audio Interface Built-in MIC
Edge Storage
 Memory Slot Micro SD, Max 256GB
Alarm N/A
Environmental
 Power Supply DC 12V (+/-30%), AC 24V (+/-30%), PoE (802.3at)(Class 0)
Power Consumption <7.2W
Operating Temp./Hum. Operating Conditions: -30°C~+60°C /-22°F~+140°F, 10%RH~95%RH
Protection Level IP67
Dimension Φ106 mm × 99.2 mm (4.17” × 3.91”)
Net/Gross Weight 0.55 kg (1.21 lb) / 0.71 kg (1.57 lb)
