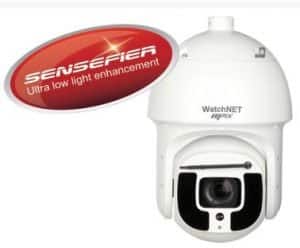

Watchnet MPIX-40IRPTZAI

Features
  • 1/1.8” CMOS 4.0MP Full HD Network PTZ Camera
  • Powerful 40x optical zoom
  • Supports Hi POE
  • 5.6mm ~ 223mm (40x Optical zoom)
  • WDR 120dB
  • AI Auto Tracking of person and/or Vehicle
  • H.265+/H.265 Encoding
  • Smart wiper
  • Support face recognition
  • Deep-learning-based auto tracking and fenced area protection
  • IR distance up to 500m/1640ft
  • IP67, Micro SD card 256GB
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Support Multicast
  • Pro AI Functions:
    · Face Capture (Detect & Recognition with attributes)
    · Fenced Area protection
    · People Counting Functions
    · Line Crossing (Person & Vehicle Classification)
Technical Specifications
Camera
Image Sensor 1/1.8” Sensefier CMOS
Scanning System Progressive scan
Effective Pixels 2560(H) x 1440(V)
Min Illumination Color: 0.001Lux@F1.4; B/W: 0.0001Lux@F1.4; 0Lux@F1.4 (IR on)
Electronic Shutter Speed 1/1s~1/30,000s
S/N Ratio More than 55dB
Lens
Max. IR Lenght 500m (1640ft)
Gain Control Auto / Manual
Max Aperture F1.4 ~ F4.8
Focal Length 5.6mm ~ 223mm (40x Optical zoom)
Angle of View H: 63.9° ~ 2.0°; V: 36° ~ 1.3°; D: 68.18° ~ 2.62°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
Features
Day/Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Backlight Compensation BLC / HLC / WDR(120dB)
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Privacy Masking Up to 24 areas
PTZ
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~100° /s
Preset Speed Pan: 200° /s; Tilt: 120° /s
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180°
Preset Speed Pan: 200° /s; Tilt: 120° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour (up to 32 preset per tour), Auto Pan, 5 Auto Scan
Idle Action Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Time Task Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Protocol WatchNET, Pelco-P/D (Auto recognition)
Video
Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Resolution 4M(2592×1520)/3M(2048×1536)/1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/ 704×480)/CIF(352×288/352×240)
Bit Rate H.265/H.264: 512K ~ 8192Kbps
Frame Rate Main stream: 4M/3M/1080P/1.3M/720P(1~25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps
Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)
Intelligence
Fenced Area Protection Line Crossing, Intrusion. Support alarm triggering by target types(human and vehicle)
Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
Auto Tracking Supports
Face Recogntion Supports
Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
ONVIF ONVIF Profile S&G, API
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP,
UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP,
NTP,DHCP, DNS, PPPOE, DDNS, FTP,
IP Filter, QoS, Bonjour, 802.1x
Smart Phone iPhone, iPad, Android
Max. User Access 20 users
Audio
Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2
Video Interface 1 port(BNC, 1.0V[p-p], 75Ω
Auxiliary Interface
RS485 1
Memory Slot Micro SD, Max 256GB
Alarm I/O 7/2
General
Power Consumption 26W, 42W (Heater on, IR on)
Power Supply AC24V/3A(}25%), Hi-PoE
Protection Level IP67
Operating temperature -40°C ~ +70°C (-40°F ~ +158°F)
Dimensions Φ262(mm) x 415.6 (mm)
Net/Gross Weight 8.5kg(18.74lb) / 13.5kg(29.76lb)
