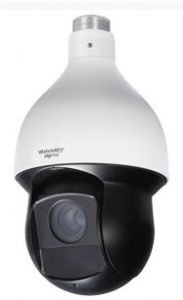

Watchnet MPIX-40IRPTZ

Features
  • 1/3” 4.0MP Full HD 30x Network PTZ Camera
  • Powerful 30x optical zoom
  • IR Distance up to 100m/328ft
  • H.265+/H.265/H.264+/H.264 Compression
  • Built-in 2/1 alarm inputs/outputs
  • Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
  • Focal Length: 4.5mm~135mm
  • 120dB WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Triple-stream encoding with Ultra-low bit rate transmission
  • Micro SD memory, IP66, POE+
  • Phone, iPad, Android
  • Multiple network monitoring: Built-in web server & Multifunction VMS
  • Support Multicast Function
Technical Specifications
Camera
Image Sensor 1/3” 4.0MP Full HD 30x Network PTZ Camera
Scanning System Progressive scan
Effective Pixels 2592(H) x 1520(V)
Min. Illumination Color: 0.05Lux@F1.6; 0Lux@F1.6(IR on
Electronic Shutter Speed 1/1s~1/30,000s
IR On/Off Control Auto / Manual
S/N Ratio More than 55dB
Lens
Max. IR Lenght 100m (328ft)
Close Focus Distance 100mm~ 1000mm
Max Aperture F1.6 ~ F4.4
Focal Length 4.5mm~135mm (30x Optical zoom)
Angle of View H: 60° ~ 2.2°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
Features
Day/Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Backlight Compensation BLC / HLC / WDR (120dB)
Noise Reduction Ultra DNR 2D / 3D
Digital Zoom 16x
Privacy Masking Up to 24 areas
PTZ
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Presets 300
Speed Setup Human-oriented focal length / Speed adaptation
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Idle Action Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol WatchNET/Pelco – P or D Protocol (Auto recognition)
Video
Compression H.265+/H.265/H.264+/H.264
Resolution 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/ 720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Frame Rate Main Stream: 4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps) Sub Stream: D1/CIF(1 ~ 25/30fps) Third Stream: 4M/1080P/1.3M/720P/D1/CIF (1~25/30fps)
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Interoperability ONVIF, PSIA, CGI
Protocol IPv4/IPv6, HTTP, HTTPS, SSL,TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, 802.1x
Edge Storage NAS / Local PC for instant recording / Micro SD card 128GB
Smart Phone iPhone, iPad, Android
Max. User Access 20 users
Audio
Compression G.711a / G.711Mu / AAC / G.722 / G.726 / G.729 / MPEG2-L2
Interface Audio Interface: 1/1 channel In/Out
Auxiliary Interface
RS485 N/A
Memory Slot Micro SD, Max 128GB
Alarm I/O 2/1
General
Power Consumption 13W, 23W (IR on)
Power Supply AC24V/3A +/-10%), PoE+(802.3at)
Protection Level IP66
Operating temperature -40º to 70 ºC (-40º to 158 ºF)
Dimensions Φ186(mm) x 309(mm) / (Φ7.32”×12.16”)
Net/Gross Weight 3.5kg(7.72lb) / 6.8kg(14.99lb)
