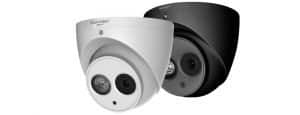

Watchnet MPIX-40IRBFTL / MPIX-40IRBFTL-B

Features
  • 1/3 4MP progressive scan CMOS
  • 2.8mm fixed lens
  • Max. IR LEDs Length 35m/115ft
  • H.265 & H.264 triple-stream encoding
  • 25/30fps@4M(2688×1520)
  • Smart detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Micro SD memory, IP67, PoE
  • IP67, PoE
  • Operating Temperature: -40°C ~ +60°C / -40°F ~ +140°F
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Model
 MPIX-40IRBFTL / MPIX-40IRBFTL-B
Camera
Image Sensor 1/3” 4.0MP progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 0.04Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Scanning System Progressive
Video Compression H.265+/H.265/H.264+/H.264
Lens
 Max Aperture F2.0 (F2.0, F2.
Focal Length 2.8mm fixed lens
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Fixed Lens
Mount Type Board-in Type
Angle of View H:104° (83°, 55°), V:58° (45°, 31°)
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
Max. IR LEDs Length 35m/115ft
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Up to 4 areas
Video
 Video Resolution 4M(2688×1520)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~14/4fps)
Bit Rate H.264: 192~10240Kbps / H.265: 80~8192Kbps
Region of Interest Off / On (4 Zone)
Streaming Method Unicast / Multicast
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Max. User Access 10 Users /20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF, PSIA, CGI
Smart Function
 Smart detection Supported
Audio
 Compression G.711a/ G.711Mu/ AAC/ G.726
Interface Built-in Microphone (Optional)
Environmental
 Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption Max 6.1W
OperatingTemp./Hum. -40°C ~ +60°C / -40°F ~ +140°F, Less than 95%RH
Protection Level IP67, POE
Dimension Φ106mm × 94mm / 4.17” × 3.70”
Net/Gross Weight 0.47kg / 1.04lb / 0.65kg / 1.43lb
