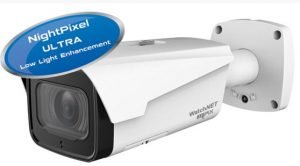

Watchnet MPIX-40BIMRAI

Features
  • 1/1.8” 4Megapixel progressive scan CMOS
  • H.265 & H.264 triple-stream encoding
  • 25/30 fps@2688×1520, 50/60 fps@1080 (1920×1080)
  • Ultra WDR(140dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
  • 2.7mm – 12.0mm motorized lens
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 50m/164ft
  • Micro SD memory (Max. 256GB), IP67, IK10, PoE+
  • Supports Electronic Image Stabilization (EIS)
  • Pro AI Functions:
    · Face Capture (Detect & Recognition with attributes)
    · Fenced Area protection
    · People Counting Functions
    · Line Crossing (Person & Vehicle Classification)
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specification
Model
 MPIX-40BIMRAI
Camera
 Motorized variable focus
Image Sensor 1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Min. Illumination 0.002 Lux@F1.8
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
RAM/ROM 1 GB / 128 MB
Scanning System Progressive
IR LEDs 4
Lens
 Max Aperture F1.8
Focal Length 2.7 mm–12.0 mm motorized lens
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Motorized / Auto Iris(DC)
Mount Type Board-in Type
Angle of View H: 114°-47°, V: 62°-26°
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / Ultra WDR (140dB)
Max. IR LEDs Length Up to 50m (164ft)
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Up to 4 areas
Video
 Video Compression H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG (sub stream)
Image Resolution 2688×1520/2560×1440/2304×1296/1080P
(1920×1080)/1.3M (280×960)/720P (1280×720)/
D1(704×576/704×480)/VGA (640×480)/
CIF(352×288/352×240)
Frame Rate Main Stream: 2688×1520 (1fps-25/30fps)
2560×1440 (1fps-25/30fps)
1920×1080 (1fps-50/60fps)
Sub Stream: D1 (1fps-25/30 fps)
D1 (1fps-50/60fps)<br) third=”” stream:=”” 1080p=”” (1fps-16=”” fps)<=”” td=””></br)>
Bit Rate H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG (sub stream)
Edge Storage NAS
Local PC for instant recording
Micro SD card 256G
Artificial Intelligence
 Face Capture Support face image capture
Face Attribute Support 6 kinds of face attributes extraction:
Age, Gender, Expression
(Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused,
Frightened), Glasses, Mouth Mask, Moustache & Beard
Fenced Area Protection Line Crossing, Intrusion (Human & Vehicle classification)
People Counting Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence Object Abandoned / Missing
Network
 Ethernet RJ – 45 (10/100Base -T )
Network Functions HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP,
DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP,
NTP, ICMP, HTTPS, IGMP, 802.1x
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G/Profile T); P2P
Smart Function
 Smart detection Supported
Audio
 Compression G.711a, G.711Mu, AAC, G.726, G.723
Interface 1/1 channel In/Out
Alarm
 Memory Slot Micro SD, Max 256GB
Alarm 2 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
Environmental
 Power Supply DC 12V (+/-30%), PoE (802.3at)(Class 0)
Power Consumption <10.9W
Operating Temp./Hum. Operating Conditions: -30°C~+60°C /-22°F~+140°F, 10%RH~95%RH
Storage Conditions: -30°C~+60°C /-22°F~+140°F, 10%RH~95%RH
Protection Level IP67, IK10, POE
Dimension 273.2 mm × 95.0 mm × 95.0 mm
(10.76” × 3.74” × 3.74)”
Net/Gross Weight 1.11kg (2.44lb) / 1.51kg (3.33lb)
