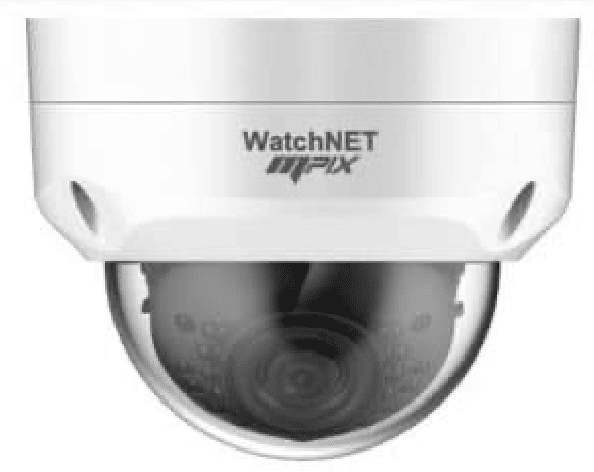

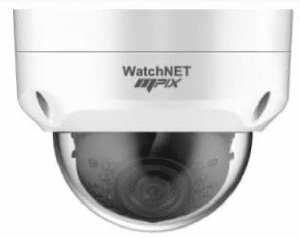

Watchnet MPIX-21VDF-IR28

Features
  • Vandal-proof IR dome camera
  • 1/2.7” 2.1MP progressive scan CMOS
  • 25/30fps@1080P(1920×1080)
  • D-WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens, 3 AXIS
  • Max. IR LEDs length 30m/98 feet
  • IP67, IK10, PoE
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Smart phones compatible
  • Supports multiple analytics functions
Technical Specification
Model
 MPIX-21VDF-IR28
Camera
Image Sensor 1/2.7” 2.1Megapixel progressive CMOS
Effective Pixels (1920H)x1080(V)
Min. Illumination 0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
RAM / ROM 256MB/128MB
S/N Ratio >More than 50dB
Scanning System Progressive
IR LEDs 24
Lens
 Max Aperture F2.0/F2.0
Focal Length 2.8mm fixed lens
Focus Control Fixed
IR Distance Up to 30m (98ft)
Mount Type Board-in Type
IR On / Off Control Auto / Manual
Features
 Day/Night Auto(ICR) / Color/B/W
Backlight Compensation BLC / HLC / D-WDR
Digital Zoom 16x
Analytics Supports multiple analytics functions
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265/H.264H/MJPEG(Sub Stream)
Image Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps))
Bit Rate H.265: 12K ~ 6400Kbps / H.264: 32K ~ 10240Kbps
Region of Interest Off / On (4 Zone)
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP; SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS; UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS
Max. User Access 10 users/20 users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF, PSIA, CGI
Edge Storage
 Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Audio
 Compression N/A
Interface N/A
Auxiliary Interface
 Memory Slot N/A
Alarm N/A
Environmental
 Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <5.5W
OperatingTemp./Hum. -30° C ~ +60° C (-22° F ~ +60° F), Less than 95%RH
Protection Level IP67, IK10, POE
Dimension Φ109.9mm × 81mm /4.33” × 3.19”
Net/Gross Weight 0.34Kg (0.75lb)/ 0.47Kg (1.04lb)
