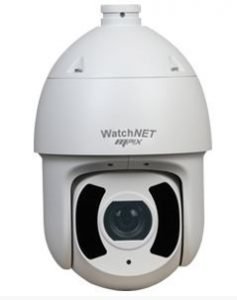

Watchnet MPIX-21IRPTZ

Features
  • 1/2.8” 2.1 Megapixel Exmor CMOS image sensor
  • Powerful 30x optical zoom
  • Supports POE+
  • 4.5mm ~ 135mm (30x Optical zoom)
  • Max. 50/60fps@1080P
  • WDR 120dB
  • Sensefier Technology
  • H.265+/H.265 Encoding
  • Max. 50/60fps@1080P
  • Supports Auto-tracking
  • IR distance up to 200m/656ft
  • IP67, IK10
  • Multiple network monitoring:
    Built-in web server & Multifunction VMS
  • Support Multicast
  • Supports multiple analytics functions
    For more information call us to better suit your needs
Technical Specifications
Camera
Image Sensor 1/2.8” Sensefier CMOS
Scanning System Progressive scan
Effective Pixels 1920(H) x 1080(V)
Min Illumination Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
Electronic Shutter Speed 1/1s~1/30,000s
Analytics Supports multiple analytic functions
S/N Ratio More than 55dB
Lens
Max. IR Lenght 200m (656ft)
Gain Control Auto / Manual
Max Aperture F1.6 ~ F4.4
Focal Length 4.5mm ~ 135mm (30x Optical zoom)
Angle of View H: 67.8° ~ 2.4°
Focus Control Auto / Manual
Close Focus Distance 100mm ~ 1000mm
Features
Day/Night Auto(ICR) / Color / B/W
White Balance Auto, ATW, Indoor, Outdoor, Manual
Backlight Compensation BLC / HLC / WDR(120dB)
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Privacy Masking Up to 24 areas
PTZ
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Pan/Tilt Range Pan: 0° ~ 360° endless;
Tilt: -20° ~ 90°, auto flip 180°
Preset Speed Pan: 300° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Idle Action Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period
Power up Action Auto restore to previous PTZ and lens status after power failure
Time Task Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Protocol WatchNET, Pelco-P/D (Auto recognition)
Video
Compression H.265+/H.265/H.264+/H.264
Resolution 1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
CIF(352×288/352×240)
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Frame Rate Main stream: 1080P/1.3M/720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF(1~25/30fps)
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
ONVIF ONVIF Profile S
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP,
UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP,
NTP,DHCP, DNS, PPPOE, DDNS, FTP,
IP Filter, QoS, Bonjour, 802.1x
Smart Phone iPhone, iPad, Android
Max. User Access 20 users
Audio
Compression G.711a/G.711Mu/AAC/G.722/G.726/G.729/ MPEG2-L2
Video Interface 1 port(BNC, 1.0V[p-p], 75Ω
Auxiliary Interface
RS485 1
Memory Slot Micro SD, Max 128GB
Alarm I/O 7/1
General
Power Consumption 17W, 26W(IR On, Heater On)
Power Supply AC24V/3A(}25%), PoE+(802.3at)
Protection Level IP67, IK10
Operating temperature -40°C ~ +70°C (-40°F ~ +158°F)
Dimensions φ209mm x 337.4mm / φ8.23” x 13.28”
Net/Gross Weight 5.8kg (12.79lb / 9.1kg (20.06lb)
