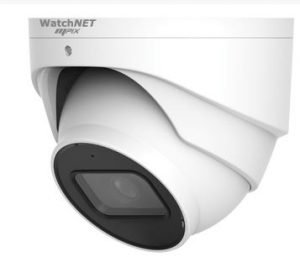

Watchnet MPIX-21IRBFTL

Features
  • 1/2.8”2.1Megapixel progressive scan CMOS
  • H.265 codec, high compression rate, low bit rate
  • Effective Pixels – 1920(H) x1080(V)
  • WDR(120dB), Day/Night (ICR), 3D DNR, BLC / HLC
  • Fixed-focal 2.8mm
  • Max. LEDs Length 30m/98ft
  • Micro SD memory (Max. 256GB), IP67, PoE
  • Supports 12V DC/PoE (802.3af)
  • Supports multiple analytic functions: · Line Crossing, Intrusion
  • Built-in web server
  • Smart phones compatible
Technical Specifications
Model
 MPIX-21IRBFTL
Camera
 Fixed-focal
Image Sensor 1/2.8” 2.1 Megapixel progressive scan CMOS
Effective Pixels 1920(H) x1080(V)
Min. Illumination 0.002 Lux @F1.6
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
RAM/ROM 128 MB / 128MB
IR LEDs Number 2 (IR LEDs)
LED Distance 30m (98ft)
Lens
 Max Aperture F1.6
Focal Length 2.8 mm
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Lens Type Fixed-focal
Mount Type M12
Angle of View Pan:106° / Tilt: 56° Diagonal: 126°
Features
 Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
Close Focus Distance 0.6m (2.0ft)
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265; H.264; H.264B; MJPEG
Image Resolution 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 1920 × 1080 (1fps-25/30fps)
Sub Stream: 704 × 576 (1 fps-25fps)704 × 480 (1 fps-30fps)
Bit Rate H.264: 32 Kbps–6144 Kbps / H.265: 12 Kbps–6144 Kbps
Edge Storage FTP; SFTP; Micro SD Card (support max. 256GB);
WatchNET Cloud; NAS
Smart Event
 Standard Analytics Line Crossing, Intrusion
Network
 Ethernet RJ – 45 (10/100Base -T )
Network Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;
802.1x; Bonjour
Max. User Access 20 Users
Smart Phone iPhone, iPad, Android
ONVIF ONVIF(Profile S/Profile G/Profile T); P2P
Audio
 Compression G.711A; G.711Mu; G.726; AAC
Audio Interface N/A
Edge Storage
 Memory Slot FTP; SFTP; Micro SD Card (support max. 256GB)
Alarm N/A
Environmental
 Power Supply 12V DC/PoE (802.3af)
Power Consumption <6.5W
Operating Temp./Hum. Operating Conditions: -40°C~+60°C /-40°F~+140°F, less than≤95%
Protection Level IP67
Dimension 99.1mm × Φ121.9mm / (3.9″ × Φ4.8″)
Net/Gross Weight 0.48 kg (1.1 lb) / 0.65 kg (1.4lb)/td>
