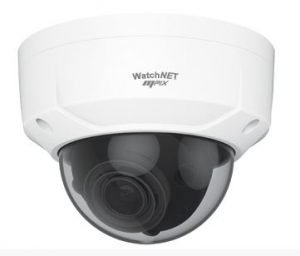

Watchnet MPIX-20VDV-IRM

Features
  • Motorized vandal-proof IR dome camera
  • Dual Voltage – DC12V, AC24V
  • 1/2.8” 2MP progressive scan CMOS
  • 50/60fps@1080P(1920×1080)
  • H.265 & H.264 triple-stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 2.7mm – 13.5m motorized lens
  • Max. IR length 50m/164ft
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Micro SD memory, IP67, IK10, PoE+
  • Multiple network monitoring: Built-in web server & Multifunction VMS
  • Smart phones compatible
Technical Specifications
Camera
 Image Sensor 1/2.8” 2MP progressive scan CMOS
Effective Pixels 1920(H) x 1080(V)
Min. Illumination 0.006Lux/F1.4 ( Color,1/3s,30IRE) 0.05Lux/F1.4 ( Color,1/30s,30IRE) 0Lux/F1.4 (IR on)
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
S/N Ratio >50dB
Scanning System Progressive
IR LEDs 3
Lens
 Max Aperture F1.4
Focal Length 2.7mm ~13.5mm motorized lens
Lens Type Motorized / Auto Iris(DC)
Mount Type Board-in Type
Angle of View H: 101°~31°, V:54°~17°
Close Focus Distance 0.3m
Features
 Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / WDR(120dB)
Max. IR Length 50m/164ft
Gain Control Auto / Manual
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Noise Reduction
 3D DNR
Privacy Masking Off / On (4 Area, Rectangle)
Video
 Video Compression H.265+/H.265/H.264+/H.264
Image Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240
Frame Rate Main Stream: 1080P (1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate H.264: 24~9472Kbps H.265: 14~5632Kbps
Network
 Ethernet RJ-45 (10/100Base-T)
Network Functions HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Max. User Access 10 Users /20 Users
Smart Phone iPhone, iPad, Android,
Interoperability ONVIF, PSIA, CGI
Audio
 Compression G.711a/ G.711Mu/ AAC/ G.726
Interface 1/1 Alarm in/out, 1/1 audio in/out
Auxiliary Interface
 Memory Slot Micro SD, Max 128GB
Alarm 1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VD
Environmental
 Power Supply DC12V, AC24V, PoE+(802.3at)(Class4)
Power Consumption <15W
OperatingTemp./Hum. -30°C~+60°C / (-22°F ~ +140°F) / Less than 95% RH
Dimension
 Φ159mm × 117.9mm / 6.26” × 4.64”
Net Weight 0.95kg (2.09lb)
