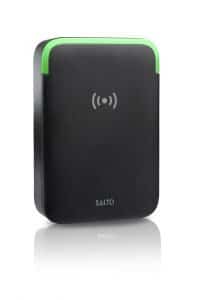

HAGER HS4 ANSI Wall Reader
HAGER HS4 ANSI Wall Reader
Categories: , , , .

HAGER HS4 ANSI Wall Reader

HS4 Wall Readers & Control Units
Applications: – High traffic openings
– Interior and exterior installation
Features- – Updates user’s credentials and communicates network updates





Specs
Management Software: – Salto ProAccess SPACE
Mounting: – Mounts to single gang electrical box with concealed fasteners
Reader Technological Specifications:
Visual Feedback: – Green light indicates access granted
– Red light indicates access denied
– Blue light indicates the credential is updating
Audio Feedback: – Standard
Platform:   – SVN (Reader only)
– KS
Credentials Technologies: – Mifare/NFC (standard)
– HID iClass®
– Bluetooth SMART (BLE)
Android (2.3.3 version minimum)
IOS
Power Source/Connection:  – Requires 4 wire connection to CU42XX for power and communication
– See installation instructions for wire requirements and lengths
Reading Distance: – Up to 2″
Operating Temperature: –  -22º F to 158º F  (-30 C to 70º C)
Reader Mechanical Specifications
Dimensions: – 5.6″ (H) x 3.8″ (W) x 1.2″ (D)
Reader Colors: – WRDB0A4BO Black
– WRDB0A4WO White
– WRD90A4BY  KS-Black
– WRD90A4WY KS-White
Warranty:  – One year
Radio Frequency Spectrum: – ETSI EN 302 291-1 V1.1.1 (2005-07)
– ETSI EN 302 291-2 V1.1.1 (2005-07)
Electromagnetic Compatibility: – ETSI EN 301 489-1 (2011-09)
– ETSI EN 301 489-3 (2002-08)
Security Requirements: – EN 60950-1 (2007)
Environment: – IP66
