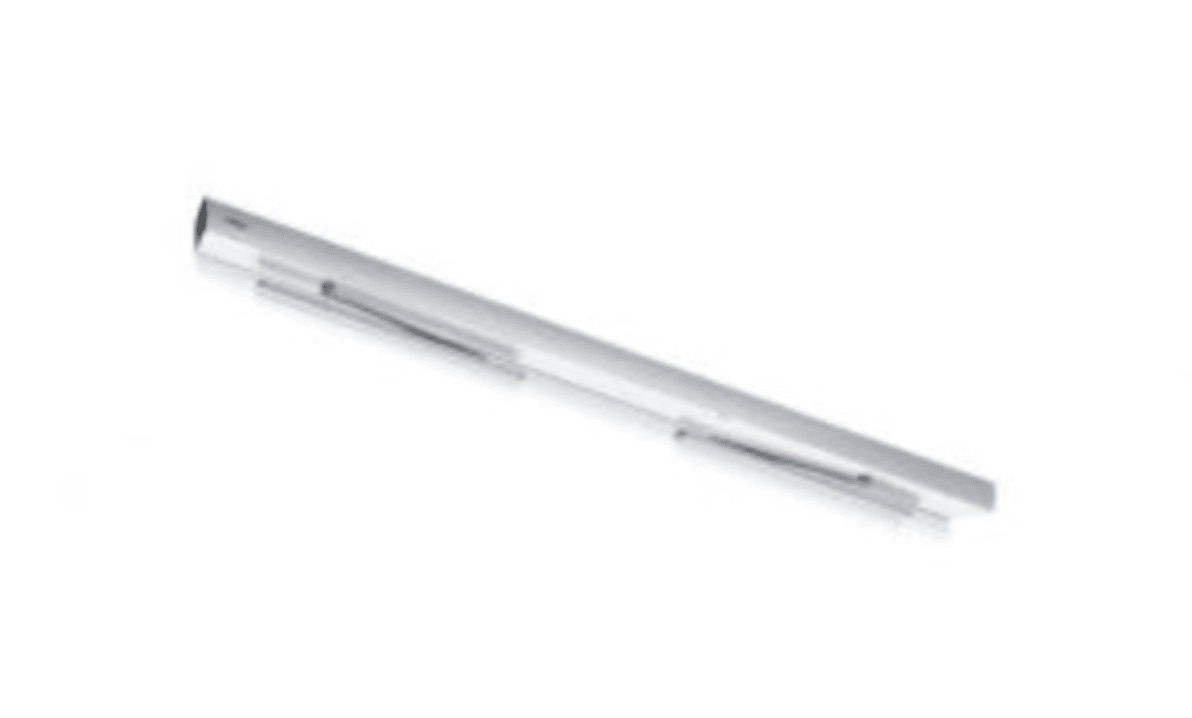

GEZE Slimdrive EMD-F/R-IS

Electromechanical swing door drive system for double leaf fire and smoke protection doors with closing sequence control and integrated smoke switch
  • Closing force with variable adjustment from EN3-6
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety requirements
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
  • Obstacle detection detects obstacles through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive components following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
Electromechanical swing door drive system for double leaf fire and smoke protection doors with closing sequence control and integrated smoke switch
Application Areas
  • Fire and smoke protection doors
  • Double leaf right and left single-action doors
  • Single-action doors up to 2800 mm hinge clearance, 1400 mm leaf width and 230 kg weight
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side
Product specifications
Slimdrive EMD-F/R-IS
Leaf weight (max.) 230 kg
Hinge size (min.-max.) 2-leaf, link arm 1500 mm – 2800 mm
Hinge size (min.-max.) 2-leaf, roller guide rail 1700 mm – 2800 mm
Leaf width (min.-max.) 850 mm – 1400 mm
Reveal depth (max.)* 300 mm
Door overlap (max.)* 50 mm
Drive type Electromechanical
Opening angle (max.) 135 °
DIN left Yes
DIN right Yes
Installation in the door leaf No
Installation in the door frame No
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail No
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail No
Door leaf installation hinge side with roller guide rail No
Door leaf installation hinge side with link arm No
Mechanical latching action Yes
Electrical latching action Yes
Electrical closing sequence control Yes
Mechanical closing sequence control Yes
Disconnection from mains Cable plug connection
Activation delay (max.) 20 s
Operating voltage 230 V
Frequency of supply voltage 50 Hz
Power rating 230 W
Power supply for external consumers (24 V DC) 1200 mA
Operating temperature -15 °C – 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Modes of operation Automatic, Permanently open, Night, Off, Shop closing
Automatic function Yes
Low-energy function Yes
Smart swing No
Servo function No
Inverse function (opening by spring force) No
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch DPS, Programme switch MPS
Parameter setting ST 220 service terminal, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Approvals EN 16005, DIN 18650, DIN 18263-4, General building approval from DIBt as a hold-open system, Door closing sequence selector tested in accordance with EN 1158
Suitability for fire protection doors Yes
Integrated smoke switch Yes
