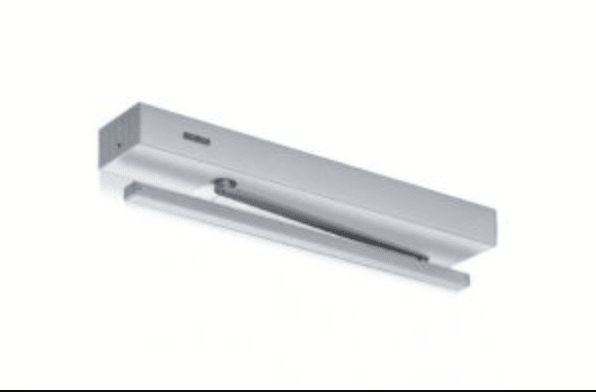

GEZE Powerturn

Electromechanical swing door drive for single leaf doors weighing up to 600 kg

  • Smart swing function for easy manual door opening
  • Closing force of EN4-7 with variable adjustment
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety requirements
  • Servo function for motorized support when manually opening the door
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
  • Obstacle detection detects obstacles through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive components following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Optional radio board for wireless activation by radio transmitter
Electromechanical swing door drive for single leaf doors weighing up to 600 kg
Application Areas
  • Right and left single leaf single-action doors
  • Single-action doors up to 1600 mm leaf width or 600 kg weight
  • Minimum door leaf width is 800 mm
  • Interior and exterior doors with high access frequency
  • Door leaf installation and transom installation
Product specifications
Powerturn
Reveal depth (max.)* 560 mm
Opening angle (max.) 136 °
DIN left Yes
DIN right Yes
Installation in the door leaf No
Installation in the door frame No
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail Yes
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm Yes
Mechanical latching action Yes
Electrical latching action Yes
Electrical closing sequence control No
Mechanical closing sequence control No
Disconnection from mains Main switch in the drive
Power supply for external consumers (24 V DC) 1.2 A
Modes of operation Automatic, Off, Permanently open, Shop closing, Night
Automatic function Yes
Low-energy function Yes
Smart swing Yes
Servo function Yes
Inverse function (opening by spring force) No
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive, Programme switch MPS
Suitability for fire protection doors No
Integrated smoke switch No
