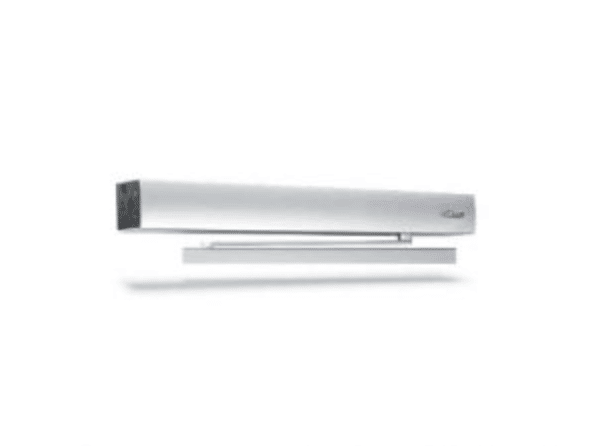

GEZE ECturn

Electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg

  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety requirements
  • Obstacle detection detects obstacles through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive components following light manual pressure on the door leaf
  • Drive can be used with guide rail or link arm
  • Glass guide rail available for use on glass doors with a glass thickness of 8-10 mm
  • Optional rechargeable battery provides maximum safety during a power failure
  • Optional radio board for wireless activation by radio transmitter
Electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg
Application Areas
  • Right and left single leaf single-action doors
  • Single-action doors up to 1100 mm leaf width or 125 kg weight
  • Entrance and interior doors with moderate access frequency
  • Automation of frameless all-glass doors
  • Door leaf installation and transom installation
  • Barrier-free access
Product specifications
ECturn
Leaf weight (max.) 125 kg
Leaf width (min.-max.) 650 mm – 1250 mm
Reveal depth (max.)* 200 mm
Door overlap (max.)* 50 mm
Drive type Electromechanical
Opening angle (max.) 110 °
DIN left Yes
DIN right Yes
Installation in the door leaf No
Installation in the door frame No
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail Yes
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm Yes
Mechanical latching action No
Electrical latching action Yes
Electrical closing sequence control No
Mechanical closing sequence control No
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Frequency of supply voltage 50 Hz – 60 Hz
Power rating 230 W
Power supply for external consumers (24 V DC) 600 mA
Operating temperature -15 °C – 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Modes of operation Automatic, Permanently open, Night, Off
Automatic function Yes
Low-energy function Yes
Smart swing No
Servo function No
Inverse function (opening by spring force) No
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch DPS, Programme switch TPS
Parameter setting Control unit, Programme switch DPS
Approvals EN 16005, DIN 18650
Suitability for fire protection doors No
Integrated smoke switch No
