Gard GT4
Automatic Accessories

The Gard GT4 by CAME is a reliable and advanced automatic barrier system designed for intensive use, supporting up to 350 cycles/hour and ensuring a lifespan of 3,000,000 cycles. Its innovative design focuses on safety, speed control, and seamless integration with access management systems.

  • 24V motor with advanced speed control – Ensures smooth, consistent operation.
  • Single-spring balancing system – Simplifies maintenance for various boom lengths.
  • LED signaling system – Red/green lights enhance visibility and access control.
  • Shock-absorbing rubber profile – Enhances safety with obstacle detection.
  • MODBUS protocol compatibility – Enables integration with access systems.
Came

CAME is a global company that designs and manufactures technology for homes, businesses, and public spaces. Their products include access control, automation, parking, and security systems.

Product Benefits
  • Reliable operation during power outages – Auxiliary battery support ensures uptime.
  • Enhanced durability – Robust design minimizes maintenance.
  • Optimized for high traffic – Perfect for busy access points.
  • Improved safety – Includes breakaway and shock-absorbing features.
  • Remote management – Configure via PC or smartphone for convenience.
Category:
Dimensione 2
Specification
  • Technical Features
  • The Complete Range
  • Details
  • Options

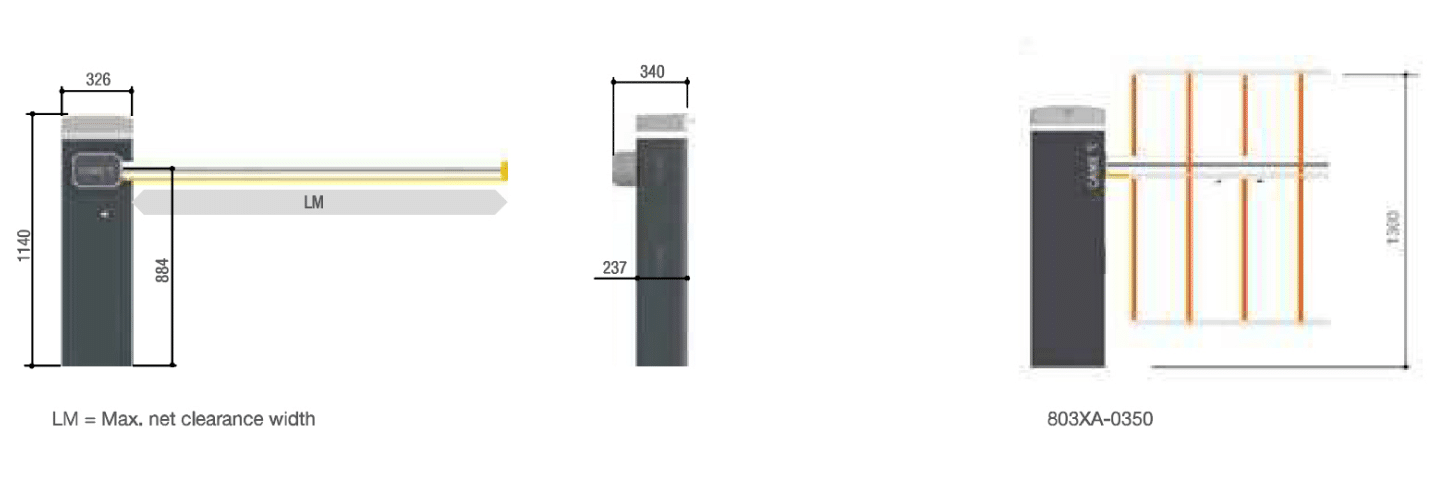

  • Dimensions
  • Operational Limits



    MODELLI

    803BB-0160

    803BB-0280

    803BB-0240

    803BB-0260

    Max. net clearance width (m)

    5

    5

    5

    5

    Technical Characteristics



    MODELLI

    803BB-0160

    803BB-0280

    803BB-0240

    803BB-0260

    Protection rating (IP)

    54

    54

    54

    54

    Power supply (V-50/60 Hz)

    230 AC

    230 AC

    230 AC

    230 AC

    Power supply to motor (V)

    24 DC

    24 DC

    24 DC

    24 DC

    Power (W)

    240

    240

    240

    240

    Opening time at 90° (s)

    2 /6

    2 /6

    2 /6

    2 /6

    Cycles/Hour

    350

    350

    350

    350

    Operating
    temperature (°C)

    -20 / +55 (-40) with item 001PSRT01

    -20 / +55 (-40) with item 001PSRT01

    -20 / +55 (-40) with item 001PSRT01

    -20 / +55 (-40) with item 001PSRT01

    RAL color

    7024

    RAL X

  • 230 V AC barriers with encoder and 24 V DC operator and built-in control panel

    Code
    Description

    803BB-0160

    GGT40AGS - Automatic barrier with irreversible 24 V DC operator with encoder; galvanized steel and painted cabinet with set up for fitting accessories.
    Balancing spring included.

    tce img 1

    803BB-0280

    GGT40ACS - Automatic barrier with irreversible 24 V DC operator with
    encoder; galvanized steel cabinet with customized RAL painting and set up for fitting accessories.
    Balancing spring included.

    tce img 2

    803BB-0240

    GGT40AX4 - Automatic barrier with irreversible 24 V DC operator with
    encoder; AISI 304 satin-finish steel cabinet with set up for fitting accessories.
    Balancing spring included.

    tce img 3

    803BB-0260

    GGT40AX6 - Automatic barrier with 24 V DC irreversible operator with
    encoder; AISI 316 satin-finish steel cabinet with set up for fitting accessories.
    Balancing spring included.

    tce img 4

    Accessories for barriers

    Code
    Description
    803XA-0270

    White painted aluminum boom, 90 x 60 mm, with internal reinforcement, groove cover-strip and shock-proof rubber profile. Length: 4220 mm.

    tce img 5
    803XA-0640

    White painted aluminum modular boom, complete with cap, consisting of: no. 2 booms 90 x 60 L = 2600 mm, joint, internal reinforcement, hollow cover profiles and shockproof rubber profile.

    tce img 6
    002RSE

    Interface card for controlling two operators or for enabling the CAME Remote Protocol.

    tce img 7
    001R700

    Control board for decoding and access-control management via transponder selector.

    tce img 8
    001R800

    Control board for decoding and access-control management via keypad selectors.

    tce img 9
    803XA-0300

    Auxiliary contacts unit for detecting the boom position.

    tce img 10
    803XA-0280

    Luminous red/green LED crown.

    tce img 11
    001G02802

    Support for fitting DIR-series photocells.

    tce img 12
    803XC-0020

    Modbus TCP/RTU bridge for integration with third party systems.

    tce img 13
    001 PSRT01

    Heater kit with thermostat.

    tce img 14
    806XG-0080

    BUS expansion module with 2 inputs and 2 outputs. Inputs can be configured in NO, NC or resistive mode (8K2), a warning light output and a relay output.

    tce img 15

    Accessories for: 803XA-0270

    Code
    Description
    803XA-0320

    Detachable boom attachment. After impact, the end of the detached boom rests onto the ground.

    tce img 16
    803XA-0310

    HD (Heavy Duty) joint for 90 x 60 mm boom.

    tce img 17
    001G02807

    Fixed rest.

    tce img 18
    803XA-0360

    Magnetic lock for boom and fixed support.

    tce img 19
    803XA-0330

    Swing rest.

    tce img 20
    803XA-0340

    Painted aluminum skirt. 1720 mm module complete with junction brackets.

    tce img 21
    803XA-0350

    Full height skirt in painted aluminum. 1720 mm module, H =1300 mm, complete with junction brackets.

    tce img 22
    803XA-0440

    Swing rest - skirt support bracket.

    tce img 23
    001G02809

    Package of 20 red, reflective, adhesive strips.

    tce img 24
    803XA-0020

    Red/green LED strips for booms up to 4-m long.

    tce img 25
    803XA-0150

    Red/green LED strip for booms up to 3 m long.

    tce img 26
    803XA-0160

    Red/green LED strip for jointed HD (Heavy Duty) boom up to 2 m long.

    tce img 27
    803XA-0190

    LED strips connection kit for HD jointed booms (Heavy Duty).

    tce img 28
    803XA-0450

    Steel support for road signs.

    tce img 29

    24 V DC accessories for barriers

    Code
    Description

    803XA-0290

    Control card kit for operating during power outages and for recharging batteries, with battery housing.

    tce img 30

    806XG-0030

    Opening and safety detector with laser technology.

    tce img 31

    009SMA

    Single.-channel magnetic sensor for detecting metal masses.

    tce img 32

    009SMA2

    Two-channel magnetic sensor for detecting metal masses.

    tce img 33

    Accessories for: 806XG-0030

    Code
    Description
    818XG-0019

    Remote control for opening and safety detector.

    tce img 34
    806XG-0050

    Steel support for opening detector and barrier safety.

    tce img 35
    806XG-0040

    24 V DC power supply for opening and safety detector.

    tce img 36
  • Details

  • Options

  • Dimensions

fitted 1

FITTED FOR BALANCING SPRING

Point A, B and C are the springs' fastening points, depending on the clearance width.
The spring attachment points A, B and C refer to the table above.

GUIDE TO POSITIONING THE BALANCING SPRING

LATERAL CLEARANCE WIDTH (m)
BOOM COMPOSITION2,25 < 2,752,75 < 3,253,25 < 3,503,50 < 3,753,75 < 4,00
Boom with LED stripproAproAproAproBproB
Boom with LED strip and single skirtproAproBproBsvgviewer png outputsvgviewer png output
Boom with LED strip and full-height skirtproAproBsvgviewer png outputsvgviewer png outputsvgviewer png output
Boom with LED strip and swing rest--proBproBsvgviewer png output
Boom with LED strip, single
skirt and swing rest
proBproBsvgviewer png outputsvgviewer png output-
Boom with LED strip, full-
height skirt and swing rest
proBsvgviewer png outputsvgviewer png output--
spbalancing

SINGLE SPRING
BALANCING

CAME's R&D department has developed a practical variable balancing system, which allows using a single spring that can be connected to the balancing lever at different predefined points. It is therefore no longer necessary to have specific springs for the different boom lengths, but it is sufficient to operate on the hooking system.

image 4 6

SIMPLE
CONFIGURATION

The control board is positioned directly under the cabinet cover.
All the configuration and maintenance phases can therefore be carried out comfortably standing upright, with the cabinet closed, in complete safety.

image 4 4 1

FULL-HEIGHT
FOLDING SKIRT

Suitable for both residential and industrial use, the folding skirt is the ideal solution to prevent access by pedestrians or unauthorized vehicles. GARD GT4 can be equipped not only with a lower skirt, but also with a special full- height solution that can be fully folded to close the gate to a height of 130 cm. This accessory is made of aluminum with white/red painted strips.
